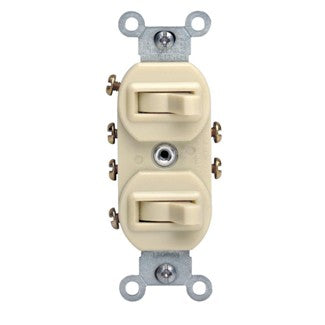

Leviton 5243-T Combo Switch, Duplex Light, 15A 120/277VAC 3-Way - Light Almond

by Leviton


Enjoy the compact and functional design of the Leviton 5243-T combination switch in a light almond color. This model in particular is ideal for commercial use. It is made of thermostatic that ensures durability for many years to come. This combination switch is grounded, but there are other models from this line available in a wide array of colors and configurations. Leviton is a smart choice for today's commercial, residential and industrial buildings. Order this Leviton 5243-T combinations switch and enjoy safe and reliable use.


  • AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wire contacts for maximum conductivity
  • All devices have a grounding screw, except where noted
  • Terminal screws accept up to #12 AWG copper or copper-clad wire
  • Fit standard wallboxes
  • Break-off tabs on devices with switches permit conversion to separate feeds


  • Color: Light Almond
  • HP Rating: 1/2HP-120V
  • Max. Amperage: 12 Amp
  • Grounding: Grounding
  • Switch: (2) Three Way Switches
  • Switch Amperage: 15 Amp
  • Switch Voltage: 120/277V AC
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
  • Temperature Rise: Maximum 30 degrees C rise
  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 65°C
  • Actuator Material: Thermoplastic
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Termination: Side
  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Ground
  • Terminal Accom.: 14-12 AWG
  • Product ID: Stamped on Strap
  • Torque Range: 12-14 inch pounds
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105
  • NOM: 057


2 year limited warranty through the manufacturer
